Fig. 01
DAQ / Telemetry

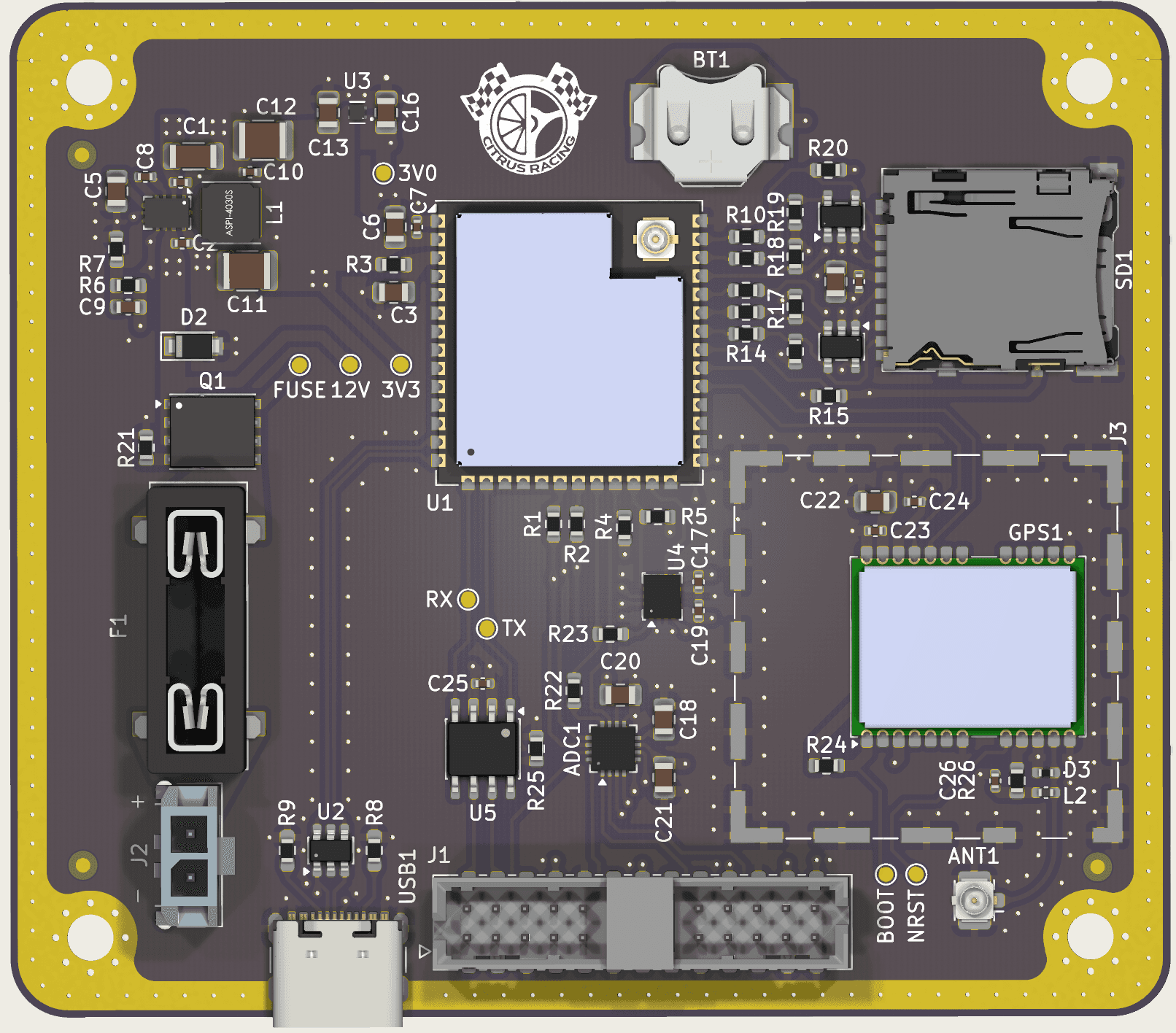

Mixed-signal data acquisition and telemetry board for a Formula SAE car.
- Core
- ESP32-S3
- Analog
- ADS7038-Q1 · ASM330LHHX
- GNSS
- u-blox NEO-M9N
- Power
- LMR36015 · TPS7A2030
- Status
- In vehicle
Mixed-signal PCB design, power electronics, and embedded firmware — schematic capture through DFM, bring-up, and the long tail of debugging nobody photographs. Computer engineering at Syracuse, currently an FPGA engineering intern at Lockheed Martin and electrical lead for Citrus Racing FSAE.
Mixed-signal data acquisition and telemetry board for a Formula SAE car.

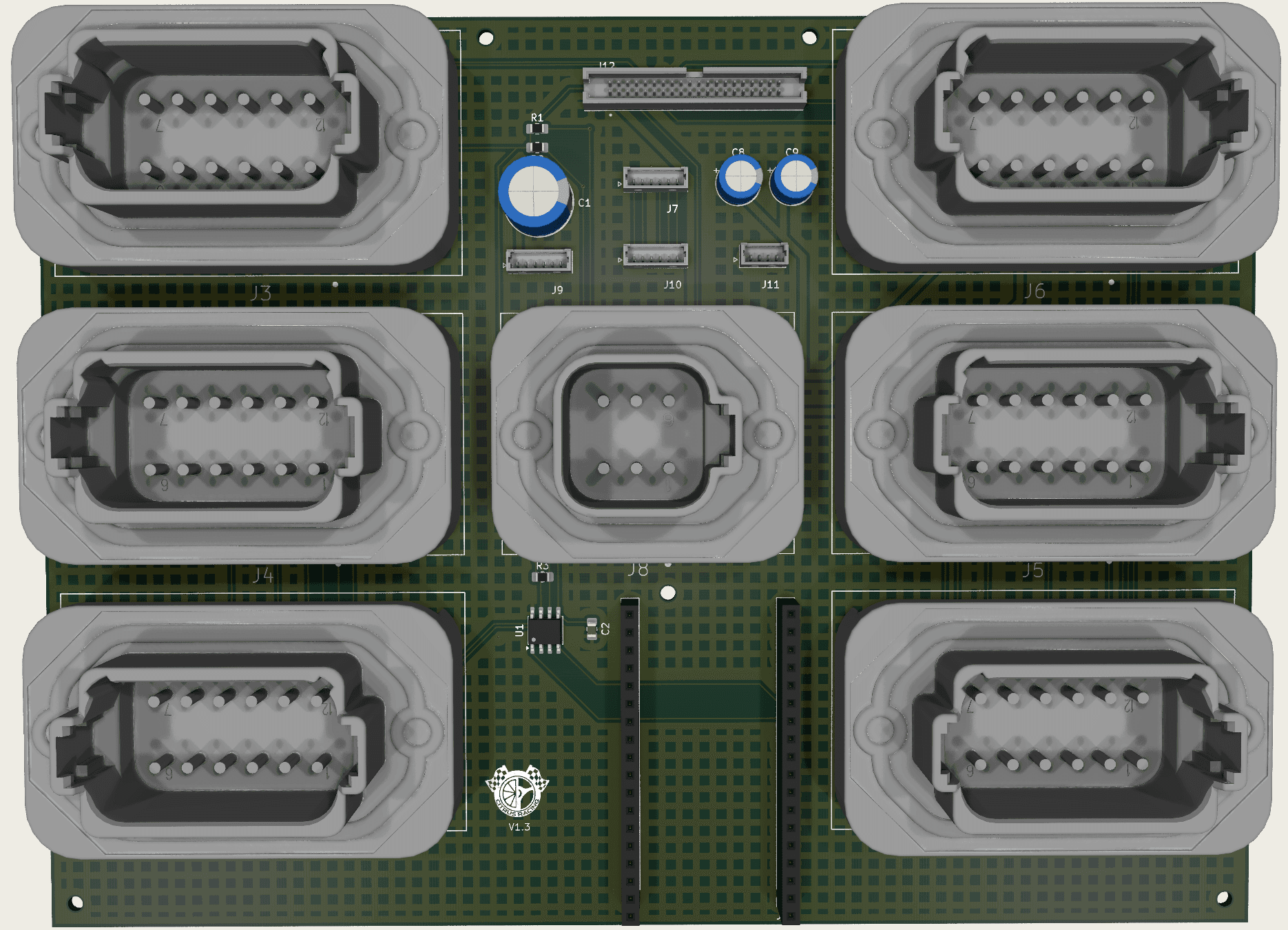

Power distribution and harness hub feeding the car's sensor and actuator runs.
In progress
Third board is in layout.
